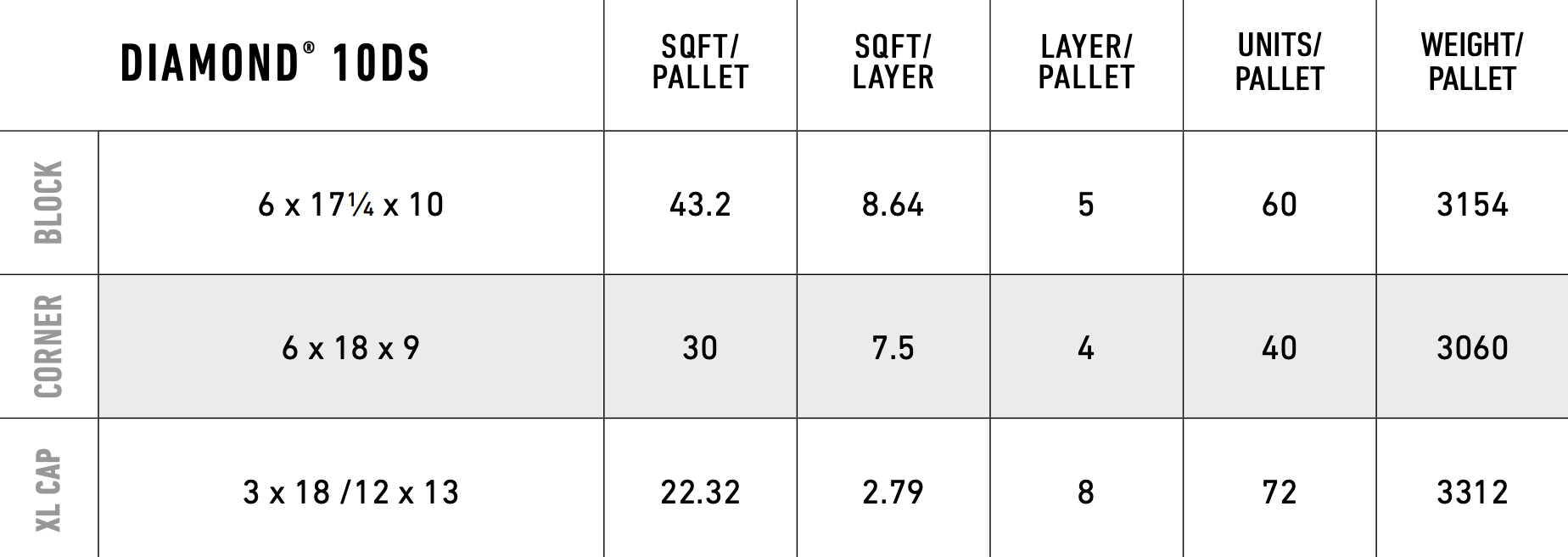

Diamond 10DS

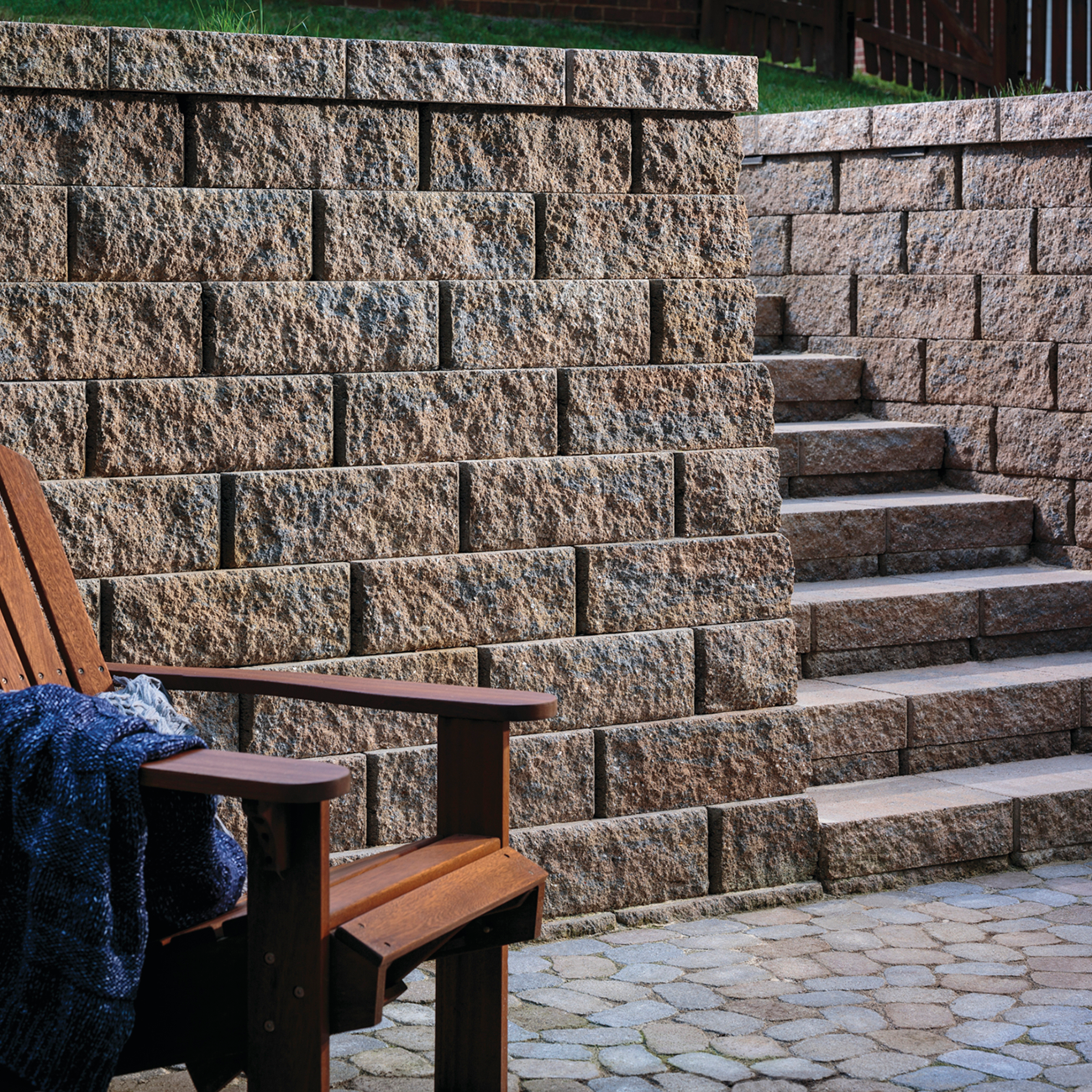

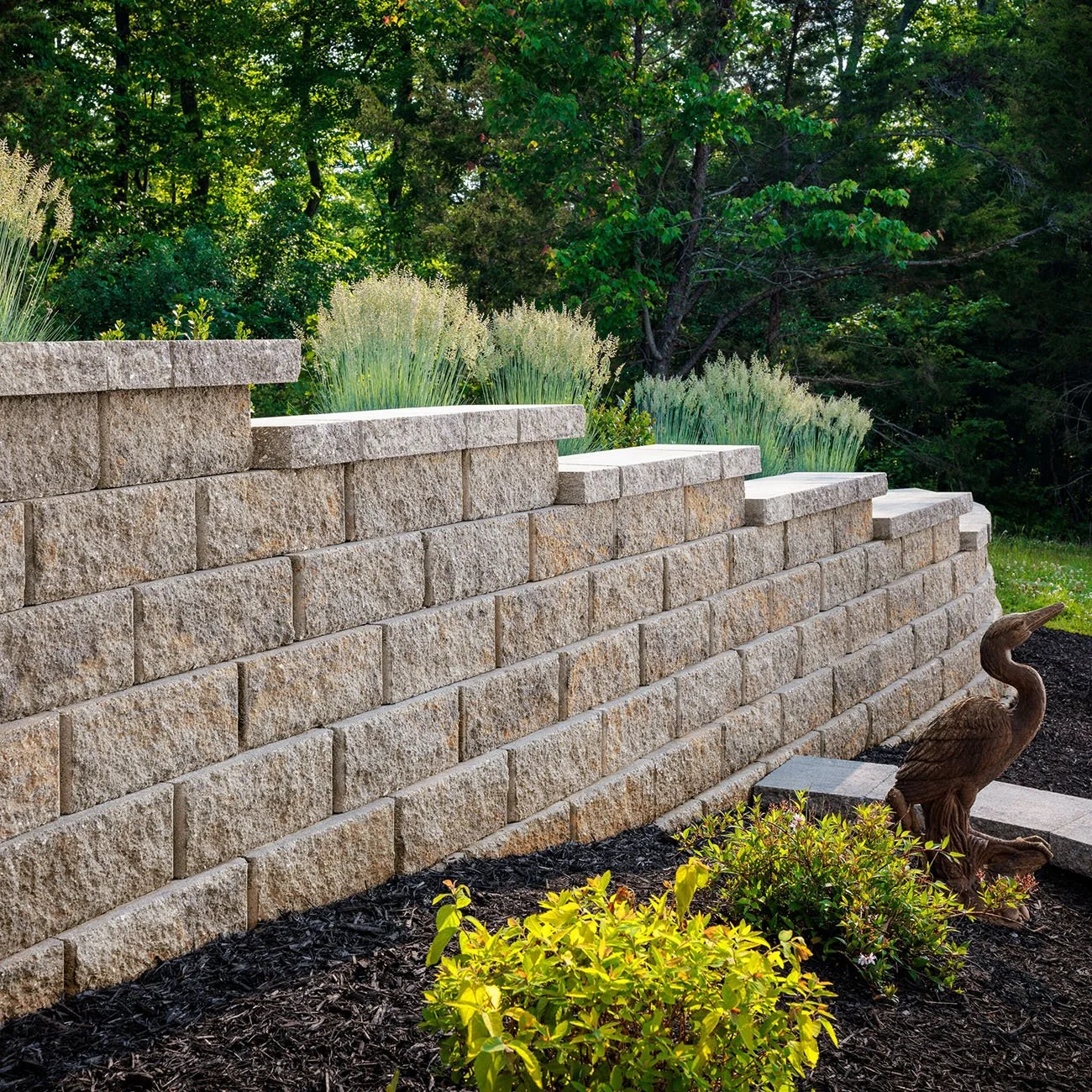

Offering a more uniform rough-hewn texture, this wall provides versatility for various applications. Its weathered stone look blends seamlessly with natural landscapes.

  • All system components are standard-split in-line.

  • Rear lip locators easily establish a uniform wall batter.

  • A matching cap and corner completes the system.

  • Build gravity walls up to 3 feet 6 inches high, including the buried course.

  • Taller walls can be built using geosynthetic reinforcement when designed by a qualified engineer.

  • Minimum outside radius, measured on the top course to the front of the units: 3 feet.

  • Minimum inside radius, measured on the base course to the front of the units: 6 feet.

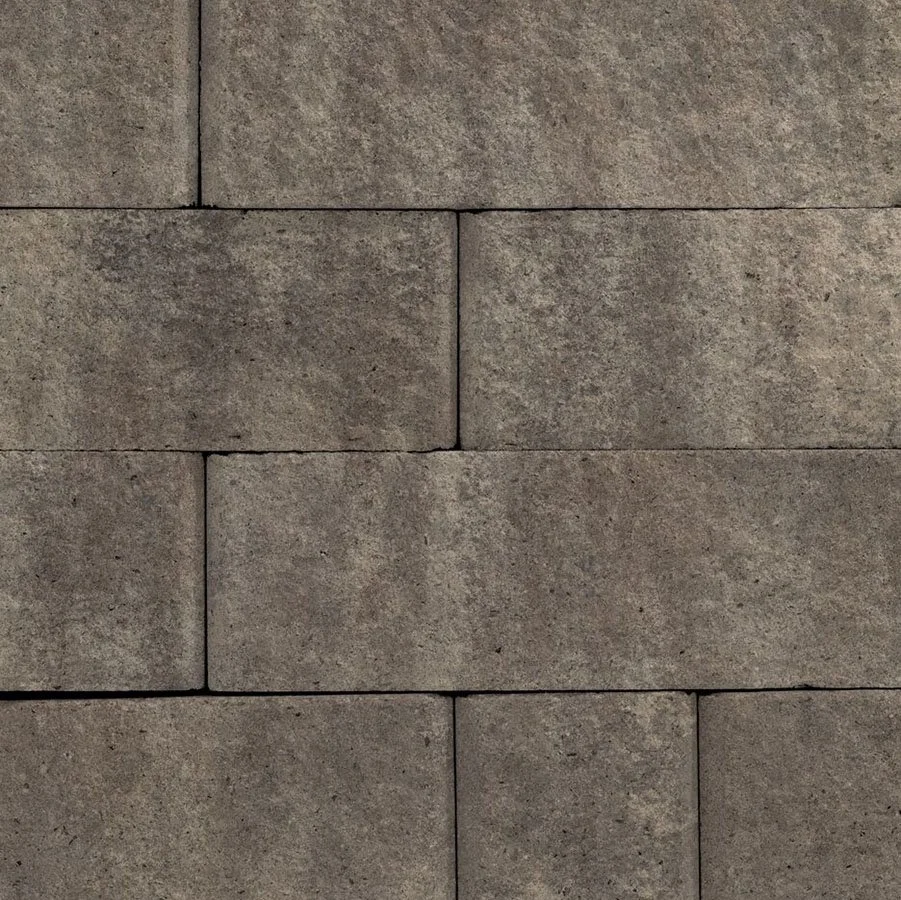

Ashwood

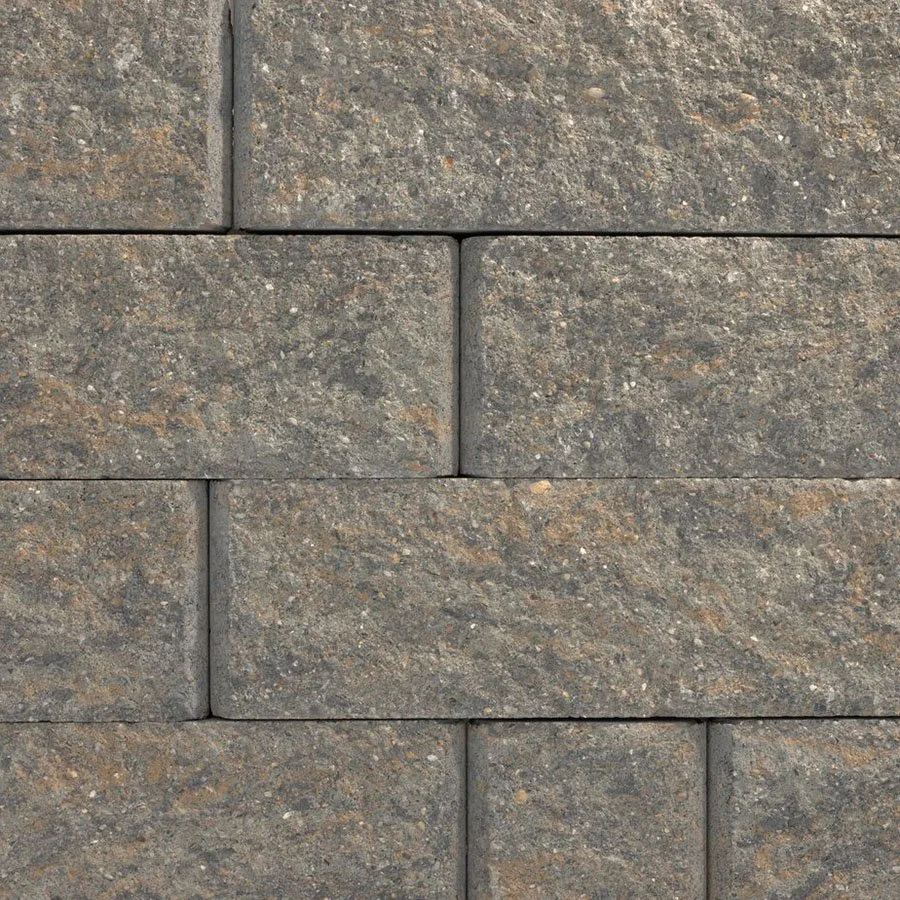

Iron Bay

Cliffside

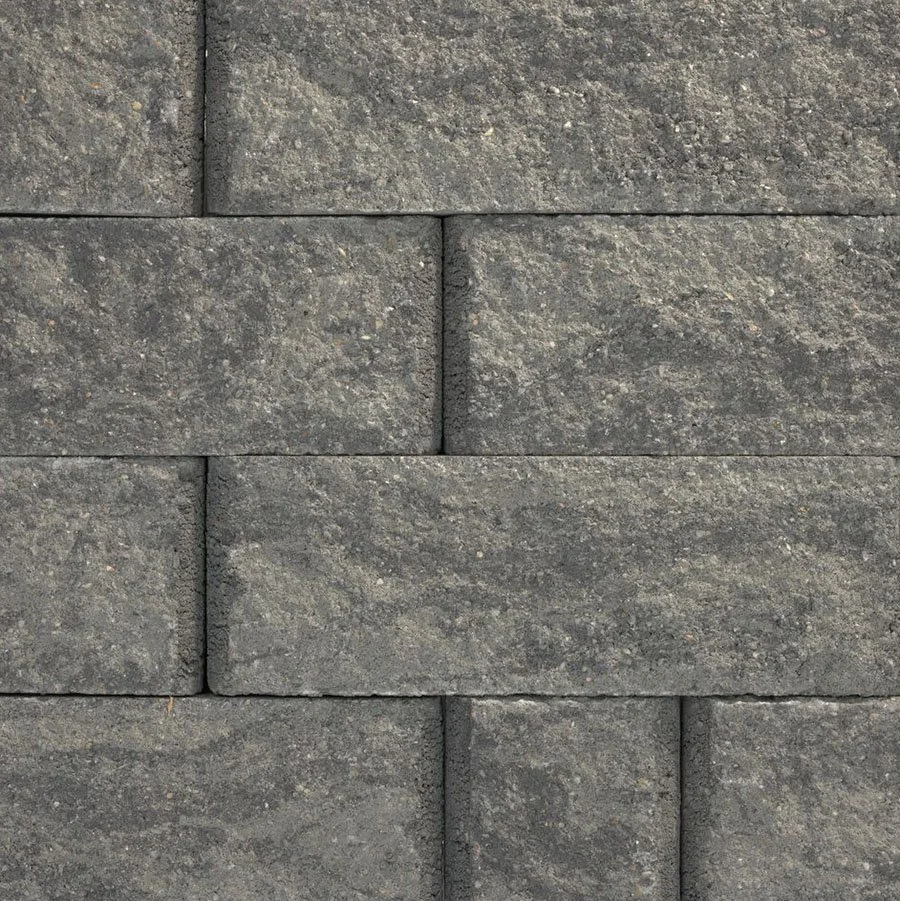

Shaded Grey

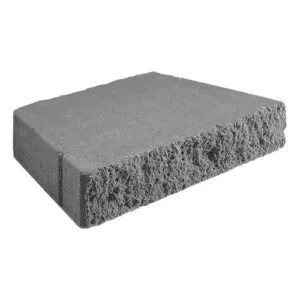

XL Cap

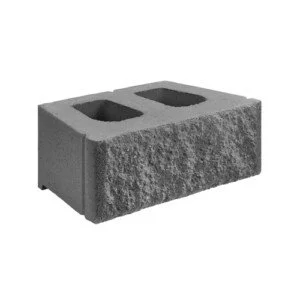

Straight Face

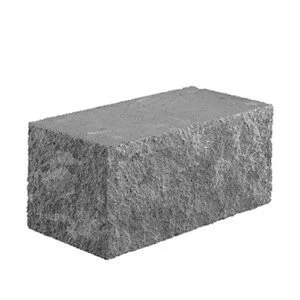

Corner
