Highland Stone

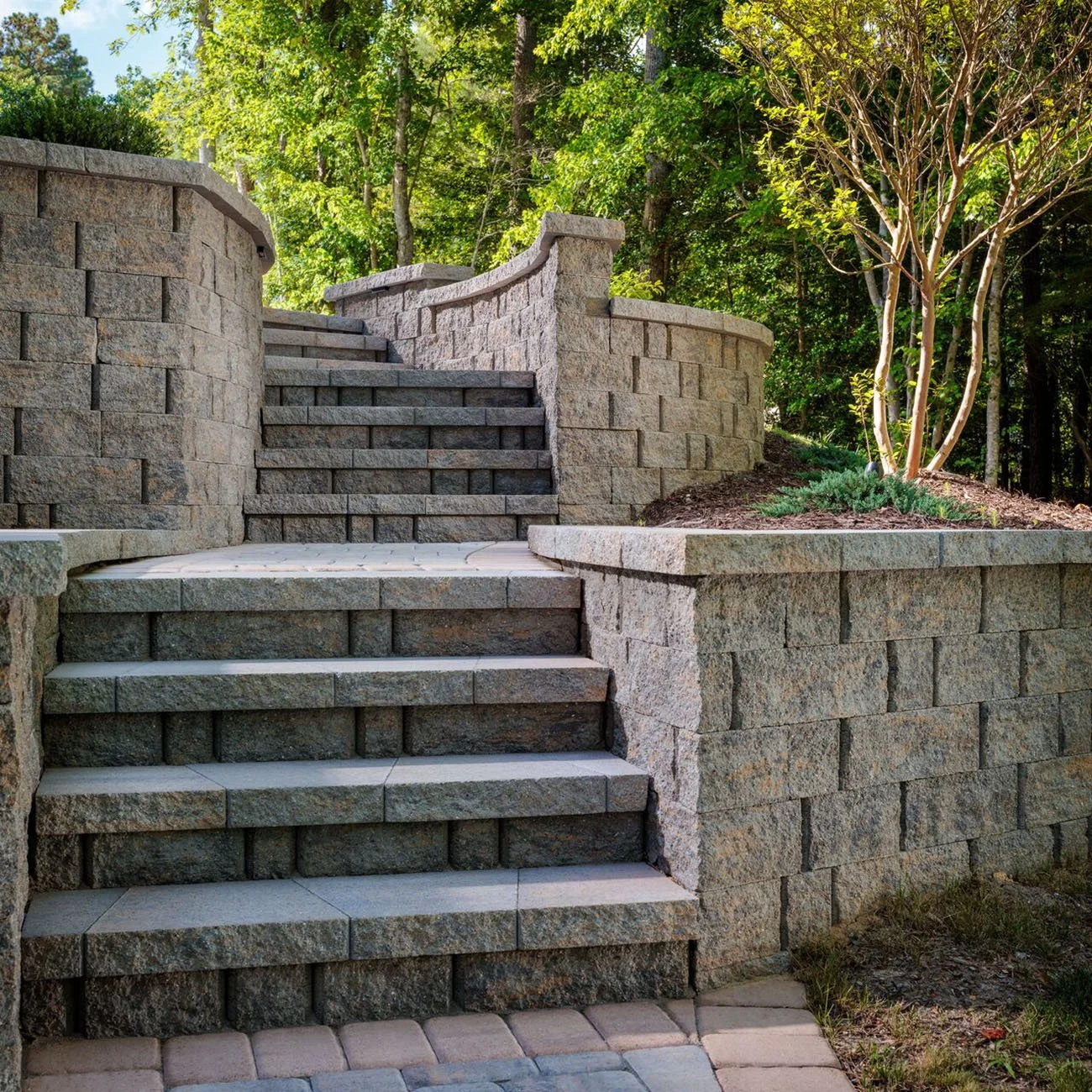

The Highland Stone retaining wall features the original rear-lip locator for fast, accurate installation. The six-inch system allows for a wide range of design possibilities for your outdoor hardscape. Highland Stone Freestanding Wall complements the retaining wall, offering almost endless capabilities.

  • Can be used to create straight or curved walls.

  • Rear-lip block makes installation fast and accurate.

  • Freestanding walls can be built up to 3 ft high, including buried course, but excluding the cap.

  • Gravity walls can be built up to 4 ft, 6 in high, including buried course.

  • Taller walls can be built using geosynthetic reinforcement when designed by a qualified engineer.

  • Minimum outside radius, measured on the top course to the front of the units: 4 ft.

  • Minimum inside radius, measured on the base course to the front of the units: 8 ft.

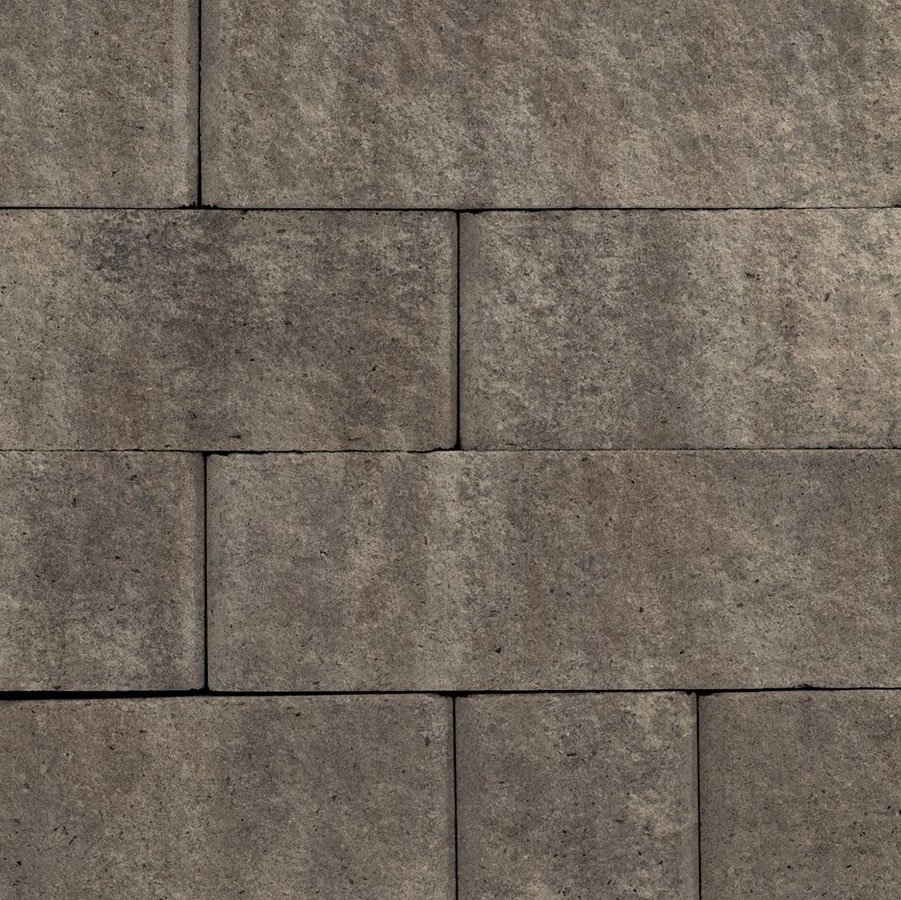

Ashwood

Iron Bay

Cliffside

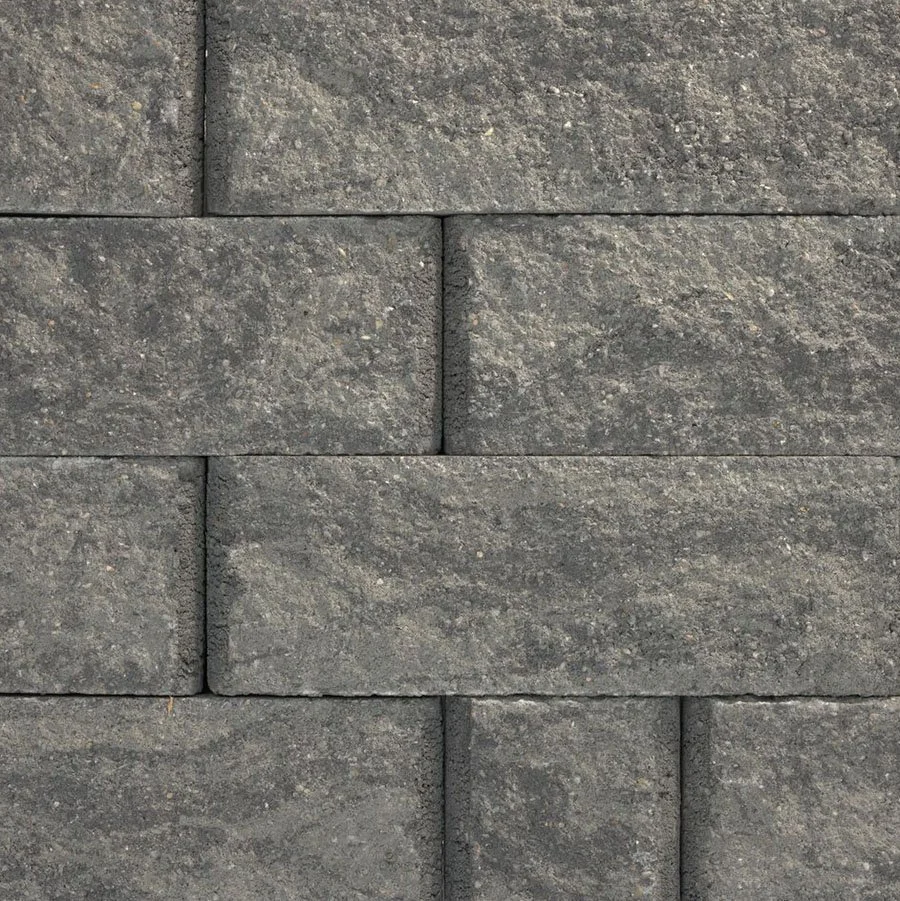

Shaded Grey

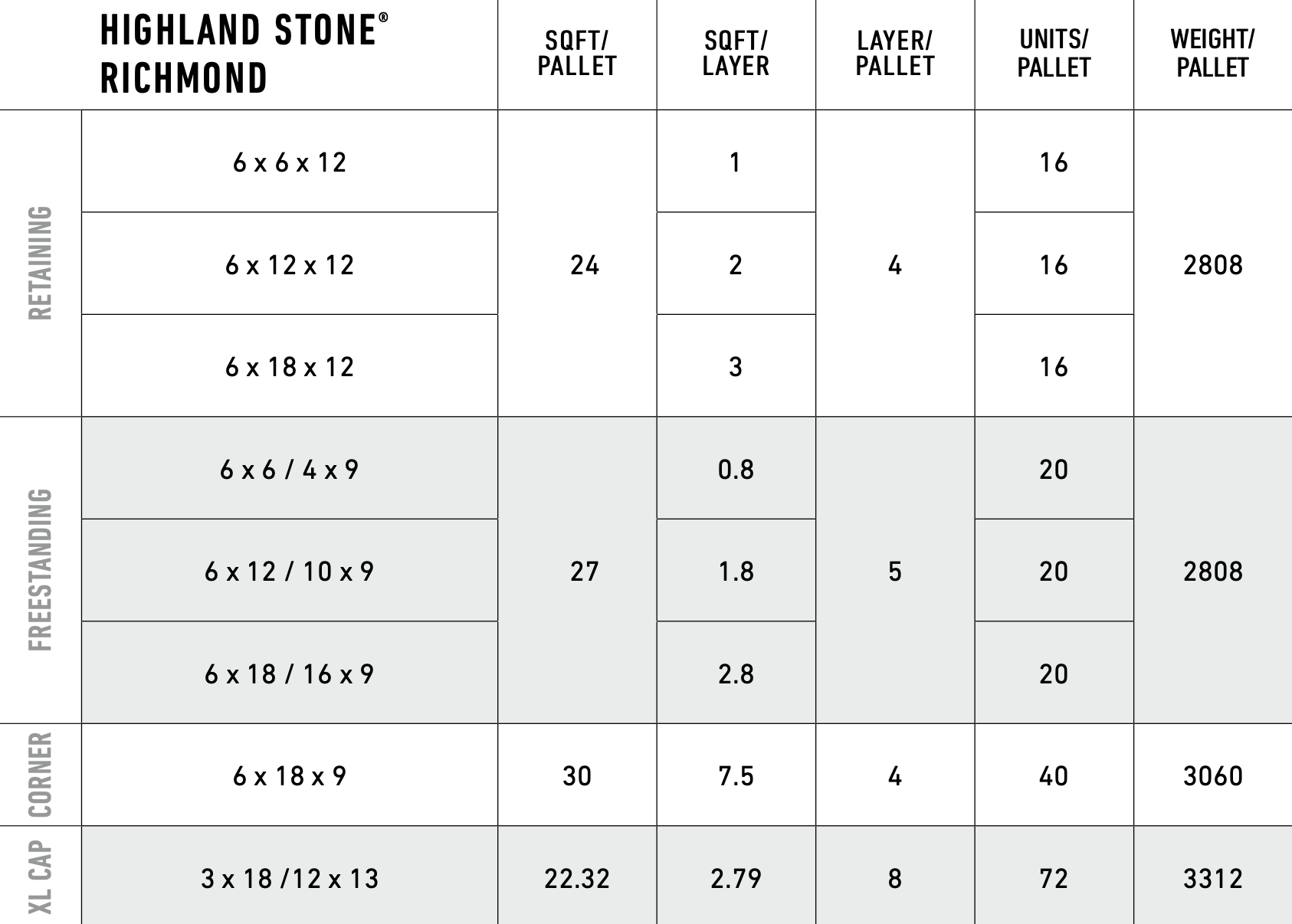

Retaining Wall 6”,12” or 18”

Freestanding Wall 6”,12” or 18”

XL Cap

U start base

Wall Corner
